Moxon Vise Build Pt.2

The Moxon vise build continued and it was completed a couple of days after beginning the project. There was a delay in determining the optimum length of the vise. This actually held me back since making the vise too short in length is essentially non-correctable later. Too long and there is a weight penalty as these Moxon vises tend to be heavy, especially with the Benchcrafted solid iron handwheels. Although the extra mass and weight can be your friend when clamping boards down, portability of the unit is also a consideration. I would need to determine the size of panels most often worked with. In my furniture making, I never go over about 20 inches in width so I set this as optimal distance between the screws. Then, using guidelines on screw hole placement provided in the Benchcrafted instructions, a final length of 28 inches was decided on. I followed the suggested screw hole placement in the Benchcrafted instructions, this saved time. Next was to mark the 3/4 inch screw holes and begin drilling, careful to have the holes in the front and rear jaws perfectly aligned.

Mortising for the captive nut in the rear jaw inside face was performed using bevel-edge and mortise chisels. Hard maple is well.. hard! In this case, the mortise chisels excelled at hogging out material from the 3/4 inch deep mortise. With a softer hardwood, lighter bevel-edge chisels would have been sufficient. I also oriented the nut so it would align well with the long edges of the rear jaw, mostly an aesthetic consideration.

After test-fitting the Benchcrafted hardware and ensuring it worked smoothly, the next step was to attach a large block of wood to the rear. This block of wood would both stabilize the vise assembly and allow holdfasts to be used to clamp the Moxon vise to the workbench top. Several other intermediate steps were performed, always careful to get alignments exactly correct. There is almost no room for error in making these vises since replacing either of the jaws is both time and material consuming.

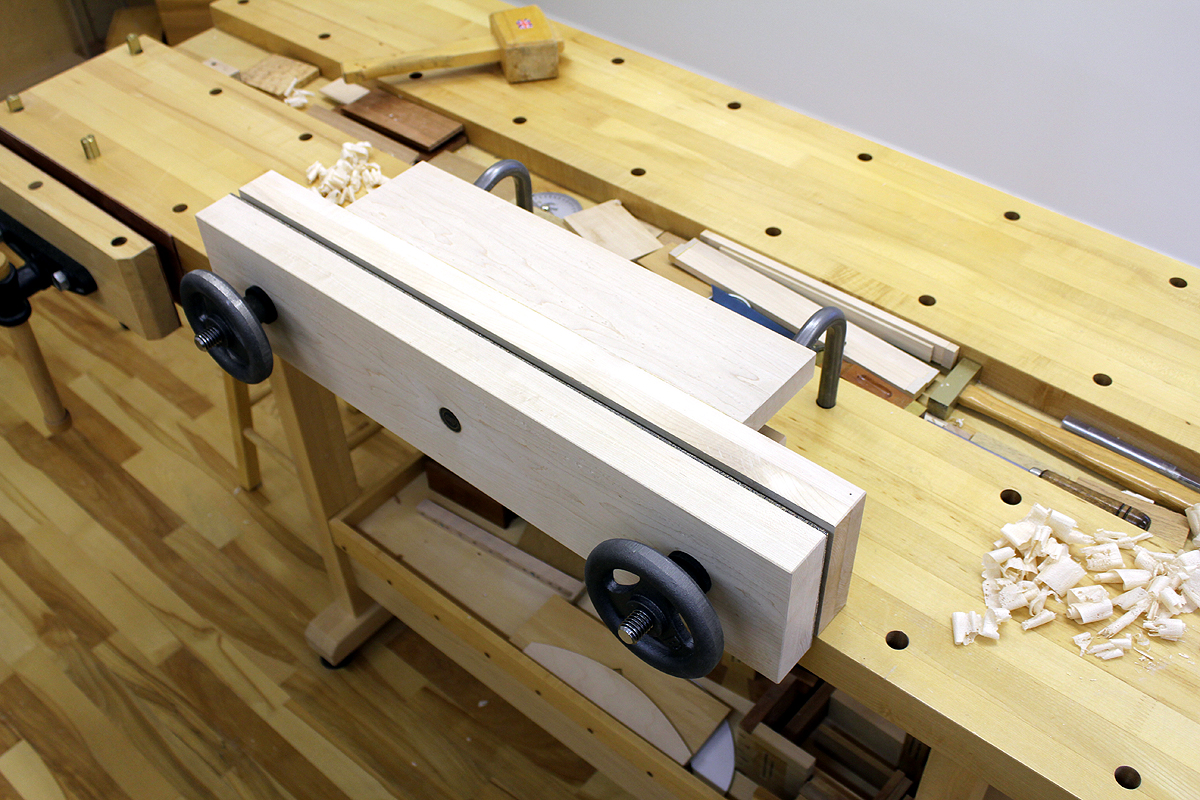

A table extension and vertical support was then added after ensuring the stabilizer was effective at clamping down the Moxon vise to the workbench. The table allows me to extend horizontal boards for marking dovetails. I customized the design to use an extra row of dog holes in the center area of my workbench. With two similar workbenches, the Moxon vise is completely portable between them. The vise can also be located anywhere on the workbench surface as the holdfast locations are optimized to clamp the stabilizer block of wood at rear of vise. I use Gramercy holdfasts but any holdfasts can be set up for use with the vise.

More detail of the handwheel, screw, and captive nut can be seen above. The table is reinforced below both long edges for maximum support, this to allow for any mallet work or chopping out dovetails. A large design consideration was to not make the Moxon vise too heavy as I would often be removing it from the workbench top and/or moving it between workbenches. The table size was optimized for this vise and the type of work I do. If designing your own Moxon vise, you will need to determine the size of boards and panels you most often work with. The overall length of the Moxon vise is the most important consideration in its design, it is best to get it right the first time! To make things easier, I have prepared a set of plans along with build instructions for the most versatile Moxon Vise size. Detailed build sequence in the plan. Build your own Moxon Vise and raise the level of your work! The Moxon Vise Plan ($15) is now available!
